Le Potato AML-S905X-CC

Libre Computer Le Potato (AML-S905X-CC) is a single-board computer based on the Amlogic S905X SoC featuring quad-core ARM Cortex-A53 CPUs. It is designed as a long-term-supported platform for media, embedded Linux, and Android projects.

The board follows the Raspberry Pi 2/3 Model B/B+ form factor and provides a 40-pin color-coded GPIO header operating at 3.3V logic levels, supporting GPIO, I2C, SPI, UART, PWM, I2S, and more.

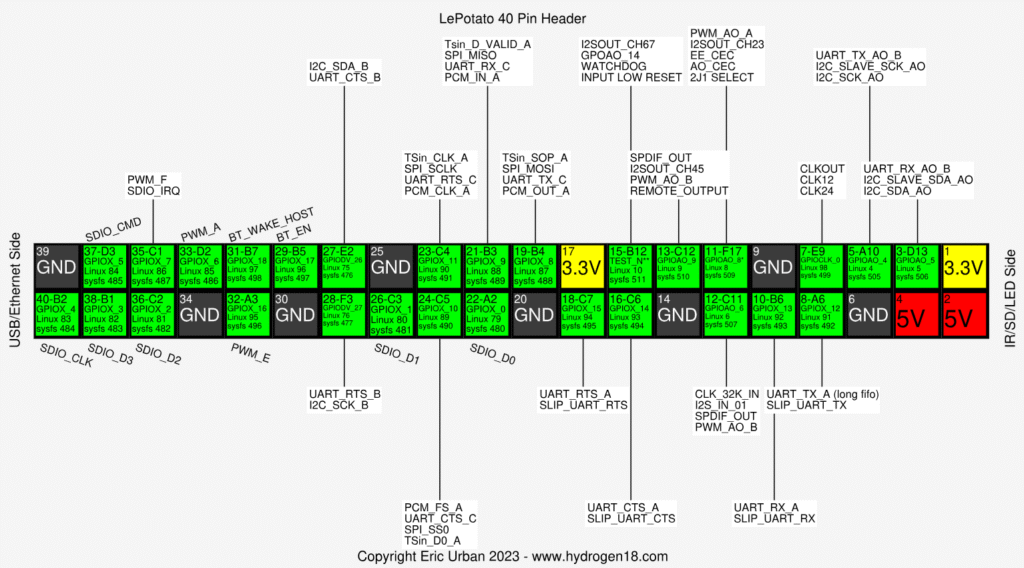

Pinout

*Img source: Shout out to Eric Urbon for creating this.

Feature	Count
Header pins	40
PWM	4
I2C buses	2
UART	Up to 4
SPI	1
I2S / PCM	Supported
5V pins	Present
3.3V pins	Present
Ground pins	Multiple
ADC	Via a separate 8-pin header

Specifications

Feature	Details
SoC	Amlogic S905X
CPU	4× Cortex-A53 @ ~1.4 GHz
GPU	Mali-450 (750 MHz)
Video engine	Amlogic AVE10
RAM	Up to 2GB DDR3
Storage	microSD + eMMC interface
GPIO header	40-pin Pi-form-factor
Logic level	3.3V
USB	3× USB 2.0 + 1× USB dual-role
Ethernet	10/100 Mbps
HDMI	HDMI 2.0 (4K HDR)
Power input	Micro-USB (5V)
Power consumption	~4W load / <1W idle

Compatibility

3.3V logic level
Supports I2C, SPI, UART, PWM, I2S
Raspberry Pi 2/3 B/B+ form factor
Micro-USB powered
Built-in ADC on a separate 8-pin header
Upstream Linux
Upstream U-Boot
Android 9 / Android TV
Kodi / LibreELEC
Debian / Ubuntu builds

Important usage notes

GPIO operates at 3.3V only and is not 5V tolerant
The 40-pin header is Pi-form-factor, but not fully pin-compatible with Raspberry Pi
GPIO11 and HDMI-CEC share a function via onboard jumper (cannot be used simultaneously)
Many pins are multiplexed and configured via device tree
Some interfaces must be enabled in the OS
Stable 5V 2A+ supply recommended
5V header pins are tied directly to input power
